Safety light BREE29

Product figure BREE29
Emergency luminaire for escape route lighting with special optics for escape route illumination. The housing is suitable for ceiling installation, the visible part is made of powder-coated sheet steel. The emergency luminaire with LED light source is suitable for connection to a central power supply system.
Product figure BREE29
Product figure BREE29
Product figure BREE29
Product figure BREE29
Product figure BREE29

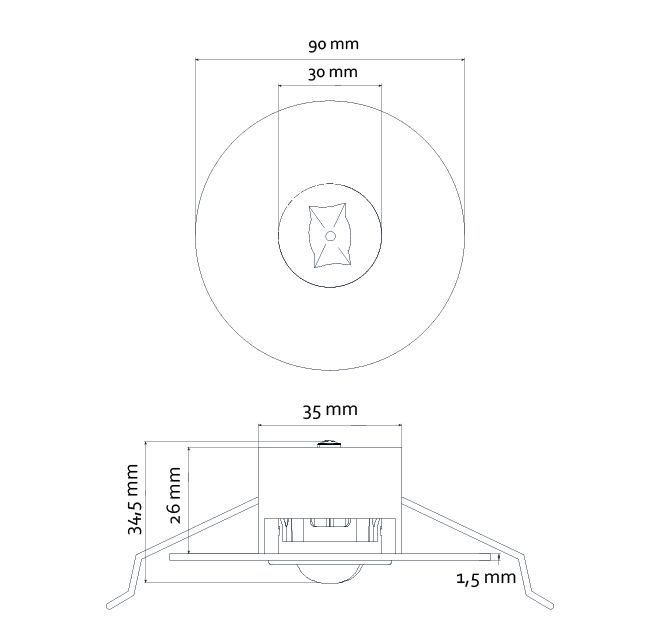

Dimensions BREE29
Dimensions BREE29

The emergency lighting luminaire is equipped with electronics for operation on central battery systems according to DIN EN 50172. The luminaire is suitable for circuit monitoring.

Technical details

Light control Planar illumination
Nominal voltage AC 230 V AC 50/60 Hz
Degree of protection IP42/20
Protection class II
Ambient temperature 0 - 40 °C
Housing material Steel sheet
Housing colour White
Mounting Recessed-mounted ceiling

Technical specifications

Article data
Item numberBREE29
EAN4250600726527
Mounting
MountingRecessed-mounted ceiling
Housing
Degree of protectionIP42/20
Protection classII
Housing materialSteel sheet
Housing colourWhite
Number of cable inlets2
Surface-mounted cablingNo
Illuminant
LED power2 W
Light controlPlanar illumination
Rated luminous flux of the luminaire251 lm
DimmableNo
Mains connection
Nominal voltage AC230 V AC 50/60 Hz
Nominal voltage DC216 V DC
Power AC3.4 W
Type of supplycentral (CPS)
Dimensions & Weight
Length90 mm
Width90 mm
Height7 mm
Installation depth30 mm
Weight0.21 kg
Packing length360 mm
Packing width105 mm
Packing height65 mm
Shipping weight0.29 kg

Distance table and light distribution curve

 Abst. WandQ-Icon Abst. LL-Icon Abst. WandL-Icon Abst. LQ-Icon
Mounting height [m]
[m]
[m]
[m]
[m]
2.00
5.08
11.33
4.59
11.33
2.50
5.77
13.46
5.25
12.76
3.00
6.63
14.60
5.55
13.25
3.50
7.40
16.26
5.98
14.80
4.00
8.10
17.74
6.32
15.50
4.50
8.73
19.09
6.85
16.06
5.00
9.31
21.23
7.34
17.15
5.50
9.83
22.35
7.78
18.14
6.00
10.31
23.36
8.19
19.04
6.50
11.17
25.32
8.56
19.86
7.00
11.57
26.14
8.90
20.61
7.50
11.92
26.88
9.54
21.28
8.00
12.72
28.68
9.82
22.71
8.50
13.01
29.27
10.07
23.26
9.00
13.78
31.00
10.67
23.75
9.50
14.01
31.46
10.87
25.08
10.00
14.75
33.12
11.45
25.47
10.50
14.92
34.78
11.61
26.75
11.00
15.64
35.05
12.16
27.04
11.50
15.76
36.65
12.28
28.28
12.00
16.45
36.80
12.82
28.48
Legend:
