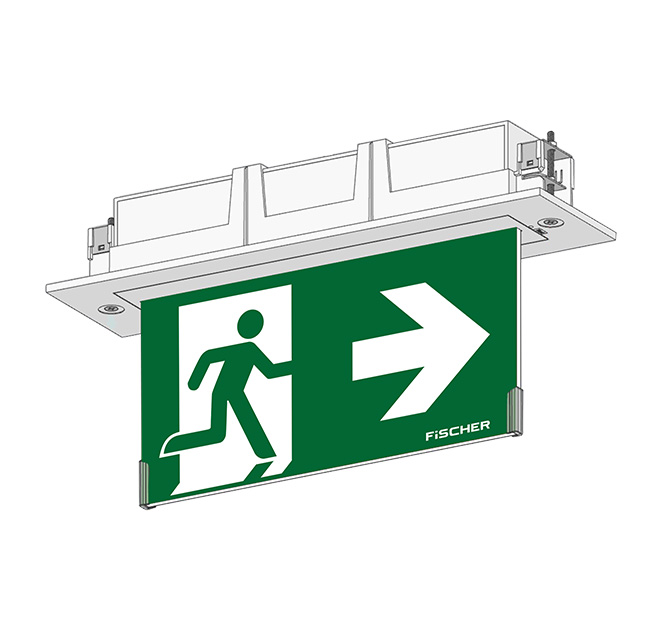

The emergency lighting luminaire is equipped with a monitoring module for automatic function and service life tests to ensure operation in accordance with DIN V VDE 0108-100-1 and DIN VDE 0711-400. The status display (ready for operation, charging operation, battery operation, battery error, LED/electronic error) is indicated via a two-colour status LED. Critical errors can be reported via an optional acoustic signal. The integrated battery contains electronic charge monitoring and deep discharge protection.
Viewing distance | 27 m |
Nominal voltage AC | 230 V AC 50/60 Hz |
Cell technology | LiFePO4 |
Autonomy | 3/8 h |
Degree of protection | IP41 |
Protection class | II |
Ambient temperature | 0 - 40 °C |
Housing material | Plastic |
Housing colour | White |
Mounting | Wall/Ceiling mounting |
Article data | |
Item number | F1-U383AT2.V5 |
EAN | 4250600748291 |
Marking | |
Luminance of pictogram | > 500 cd |
Viewing distance | 27 m |
Type of pictogram | Plugable foil |
Mounting | |
Mounting | Wall/Ceiling mounting |
Housing | |
Degree of protection | IP41 |
Protection class | II |
Housing material | Plastic |
Housing colour | White |
Number of cable inlets | 4 |
Surface-mounted cabling | Yes |
Illuminant | |
LED power | 3 W |
Dimmable | No |
Mains connection | |
Nominal voltage AC | 230 V AC 50/60 Hz |
Type of supply | dezentral (selbstversorgt) |
Accumulator | |
Cell technology | LiFePO4 |
Nominal voltage | 3.2 V |
Nominal capacity | 1500 mAh |
Autonomy | 3/8 h |
Dimensions & Weight | |
Length | 283 mm |
Width | 50 mm |
Height | 188 mm |
Weight | 0.75 kg |
Packing length | 299 mm |
Packing width | 200 mm |
Packing height | 56 mm |
Shipping weight | 0.85 kg |
