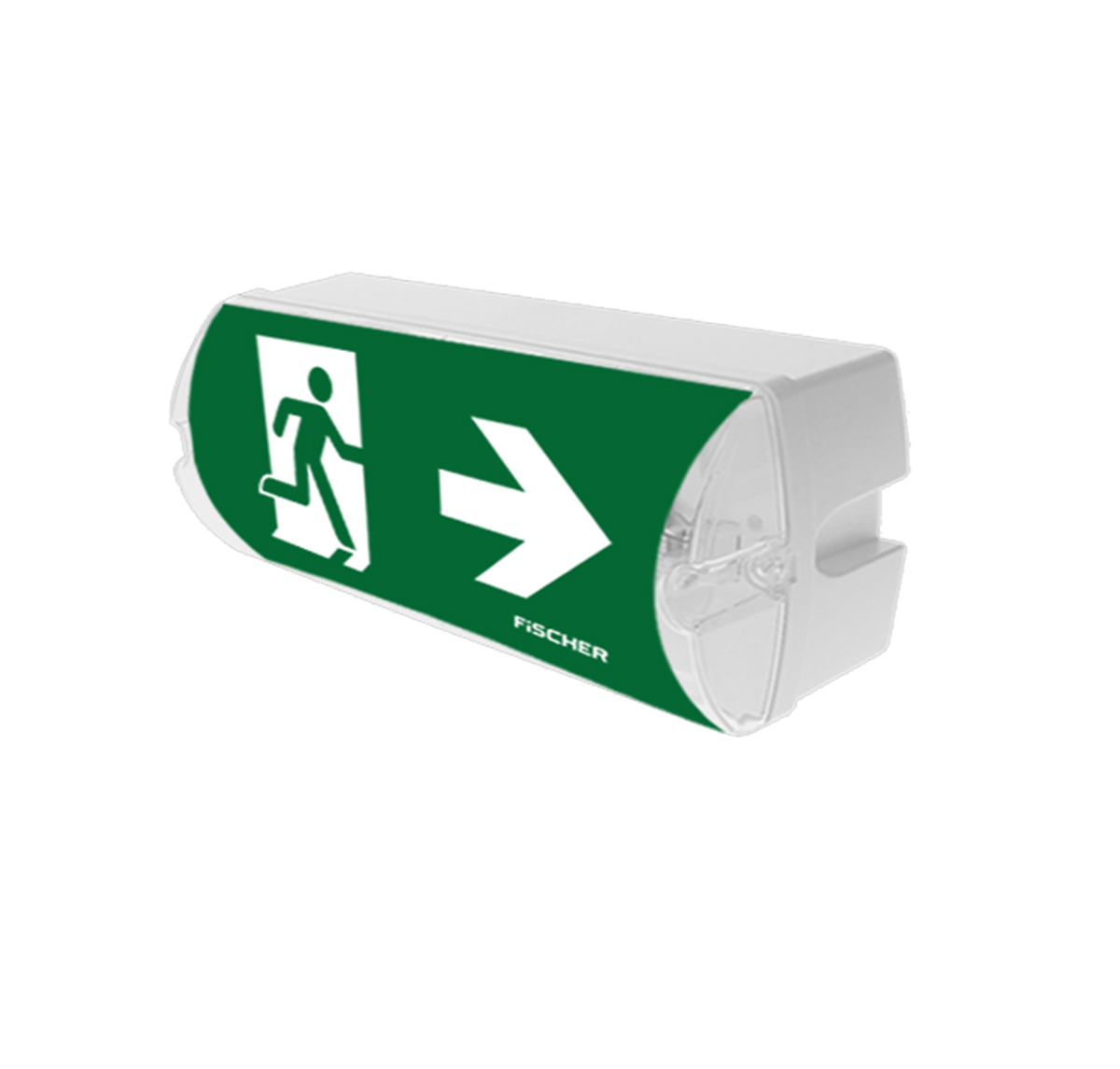

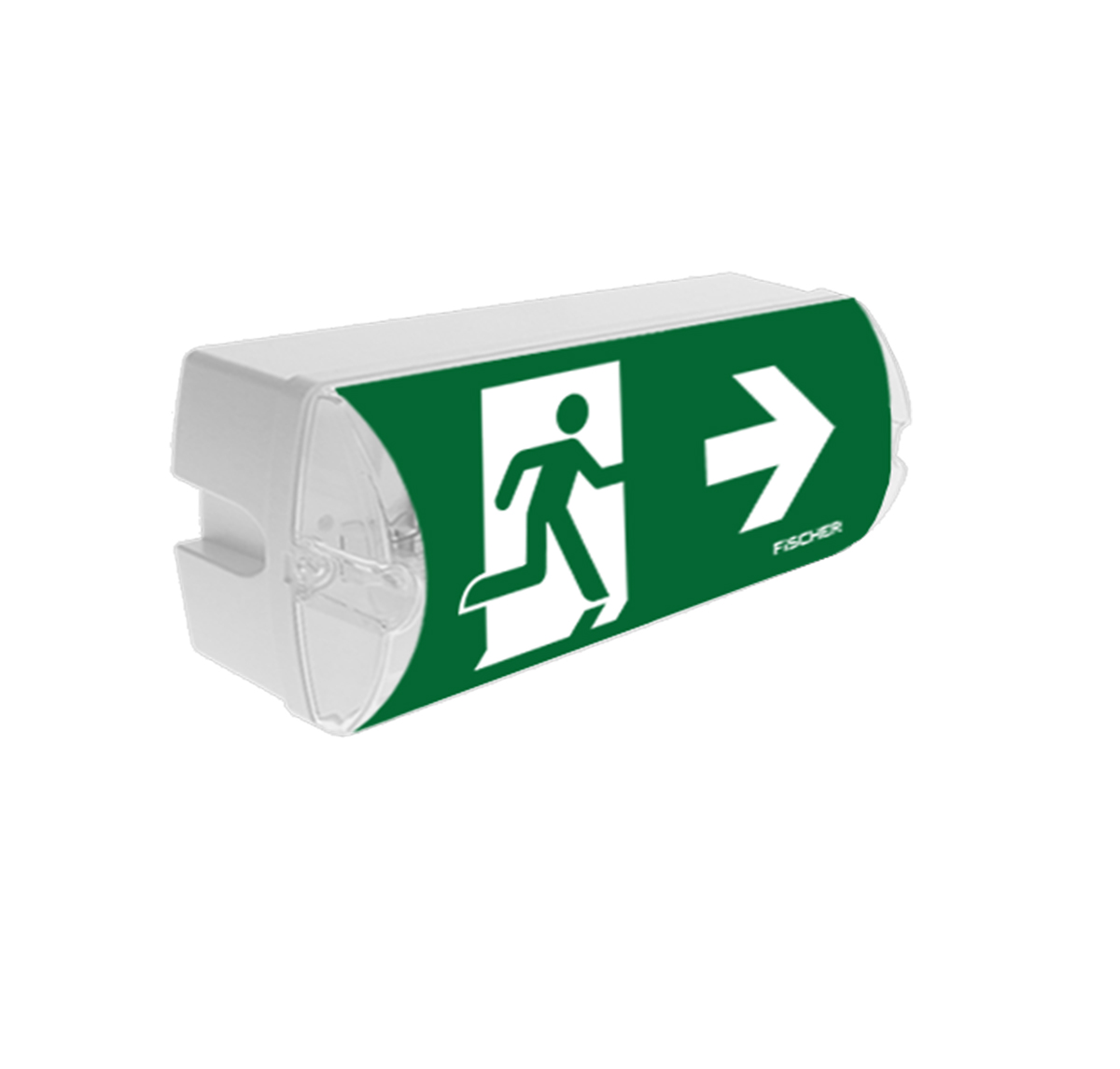

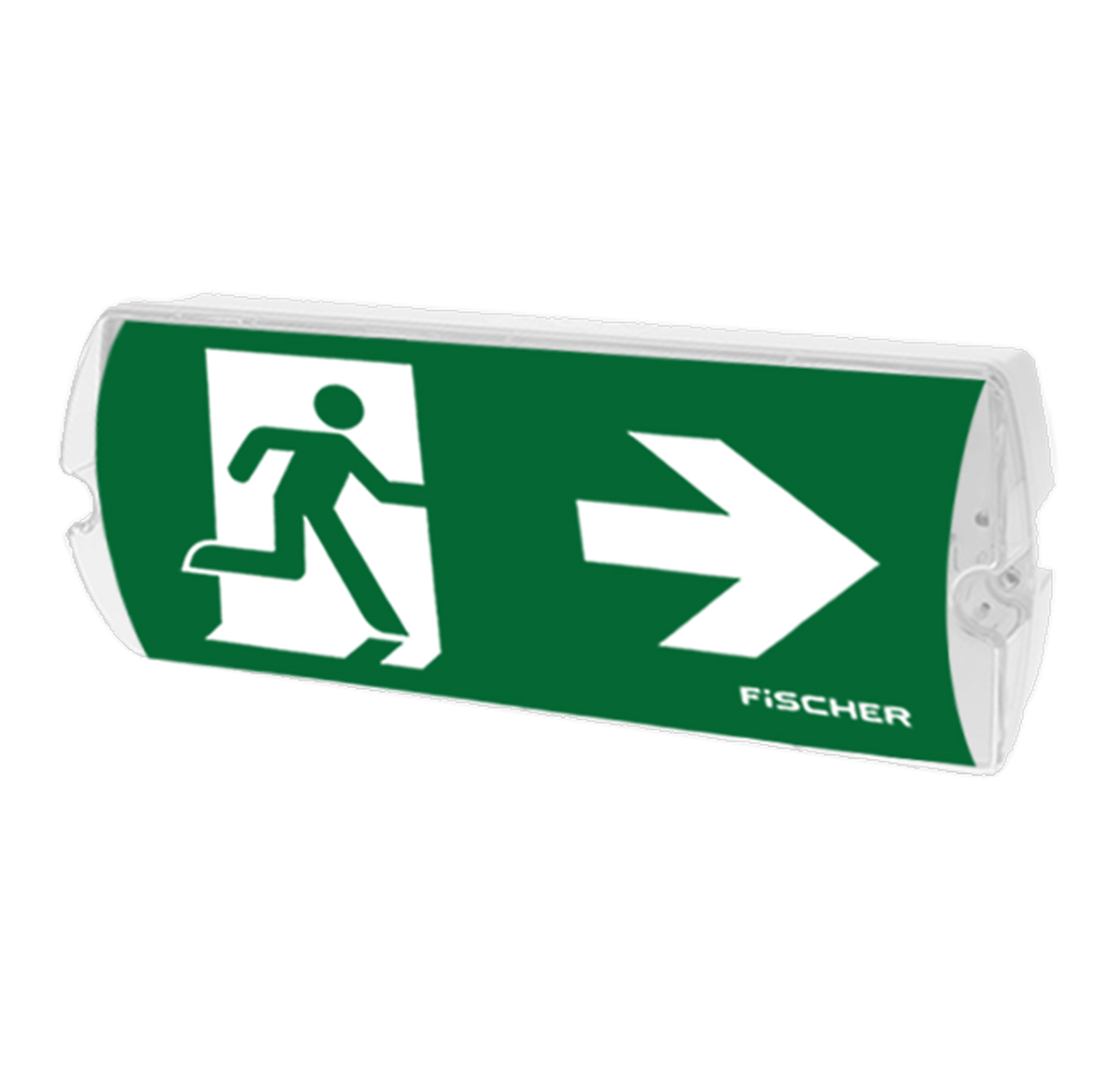

The emergency lighting luminaire is equipped with an addressing, monitoring and switching module for INSiLIA2 systems. The module is self-addressing and has a unique address. The integrated performance monitoring of the LED and electronics enables detailed function tests. The luminaire can be switched and dimmed via the INSiLIA2 LPS system. The supply is 48 V DC and has a connection protected against polarity reversal.
Viewing distance | 28 m |
Degree of protection | IP65 |
Protection class | III |
Ambient temperature | -15 - 40 °C |
Housing material | Plastic |
Housing colour | White |
Mounting | Surface-mounted wall |
Article data | |
Item number | HAWE83I2 |
EAN | 4250600732313 |
Marking | |
Luminance of pictogram | > 500 cd |
Viewing distance | 28 m |
Type of pictogram | Sticky foil |
Mounting | |
Mounting | Surface-mounted wall |
Housing | |
Degree of protection | IP65 |
Protection class | III |
IK Class | IK08 |
Housing material | Plastic |
Housing colour | White |
Surface-mounted cabling | Yes |
Illuminant | |
LED power | 3 W |
Dimmable | Yes |
Mains connection | |
Nominal voltage DC | 48 V DC |
Power DC | 4 W |
Type of supply | central (CPS) |
Dimensions & Weight | |
Length | 355 mm |
Width | 135 mm |
Height | 79 mm |
Weight | 1.2 kg |
Packing length | 385 mm |
Packing width | 145 mm |
Packing height | 85 mm |
Shipping weight | 1.6 kg |
