Escape sign luminaire HAWE83.V3

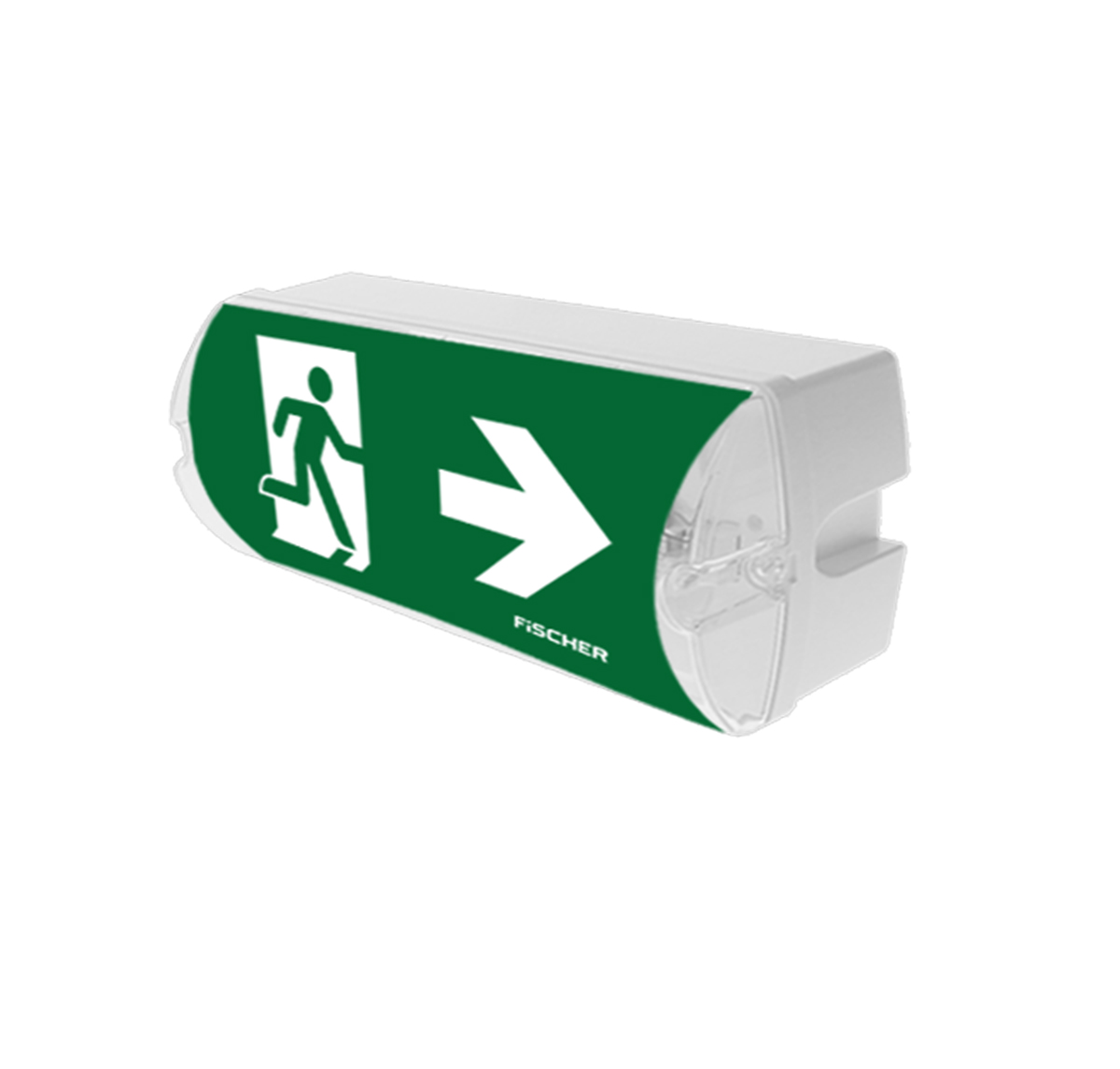

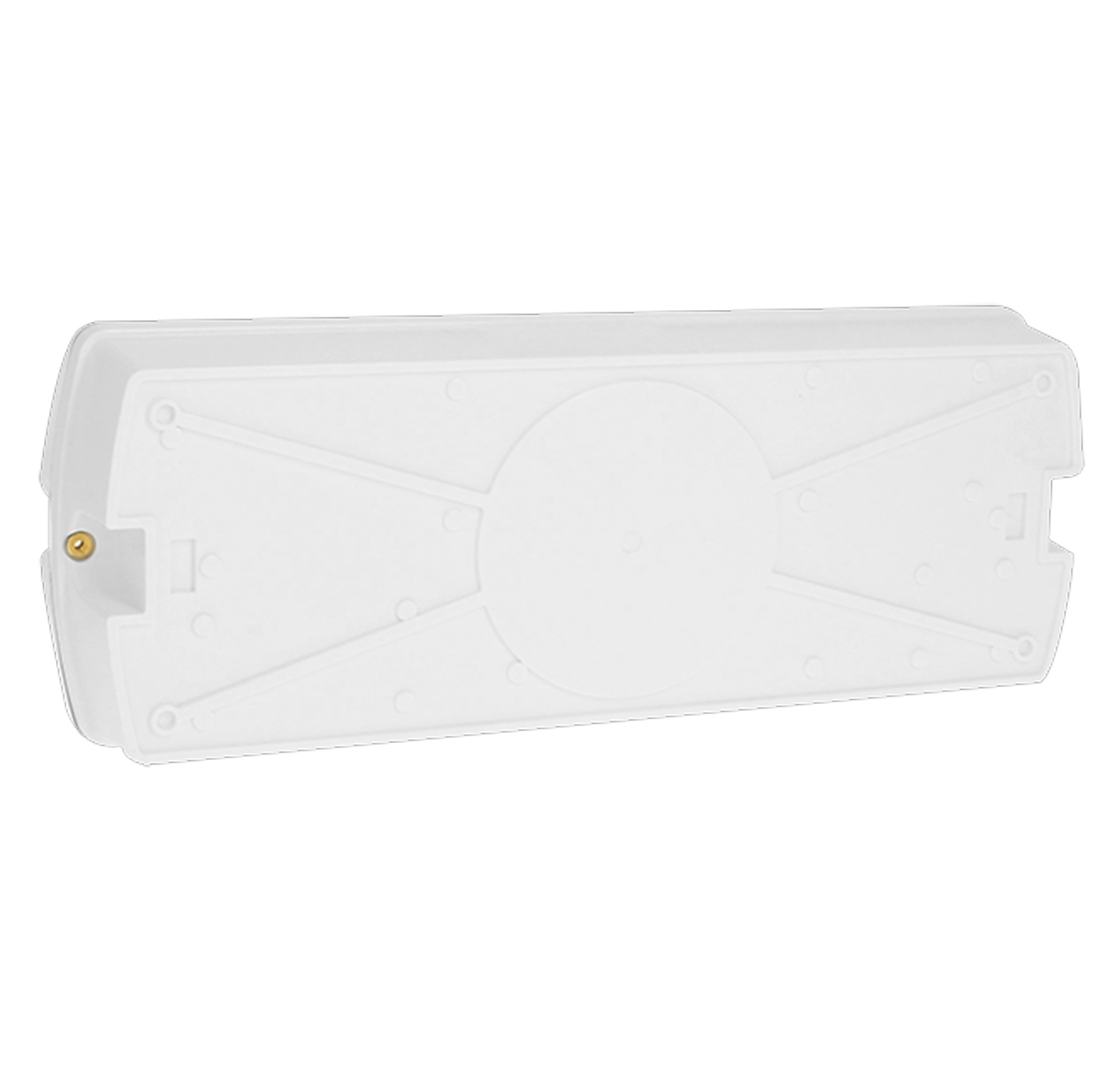

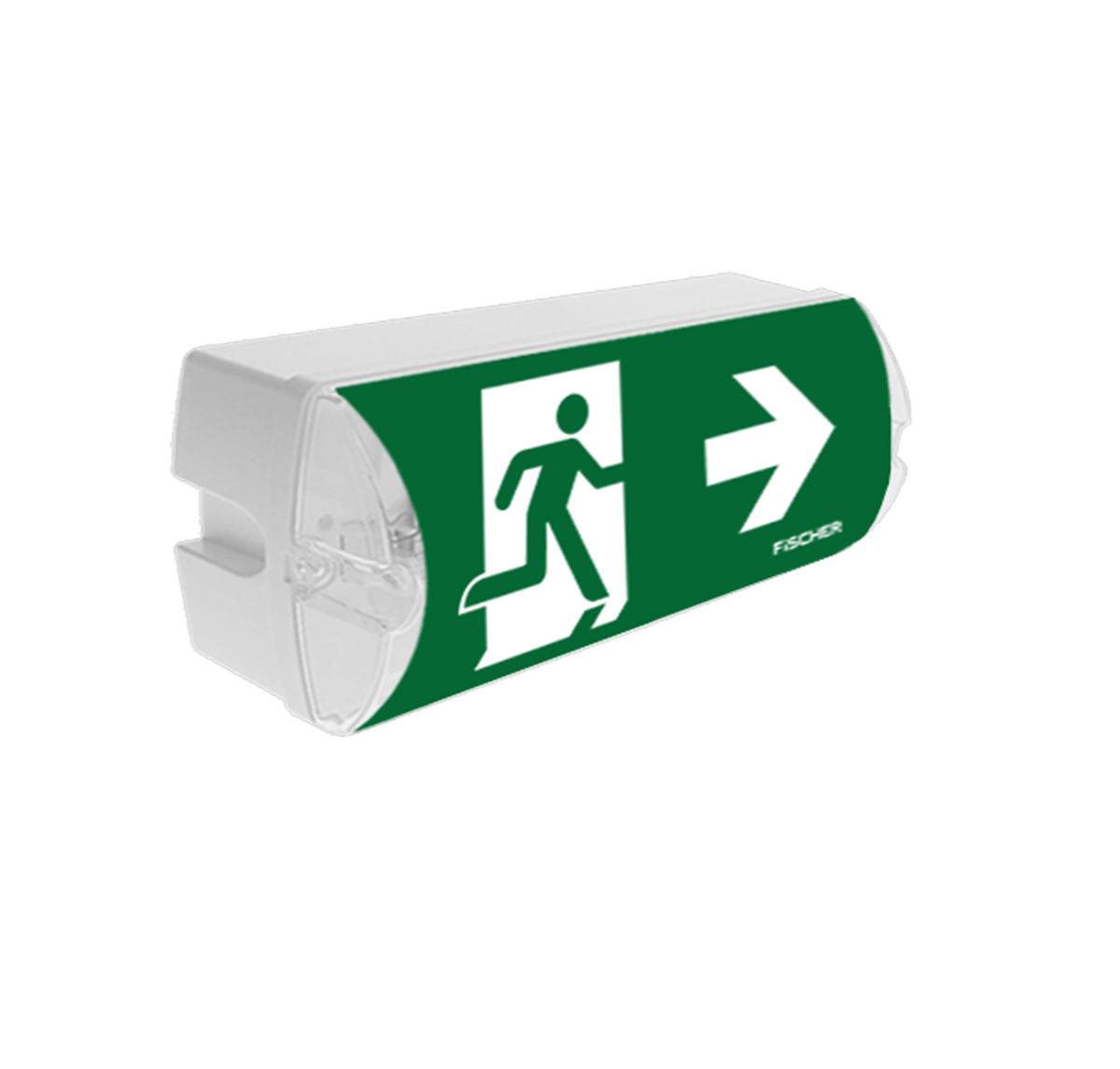

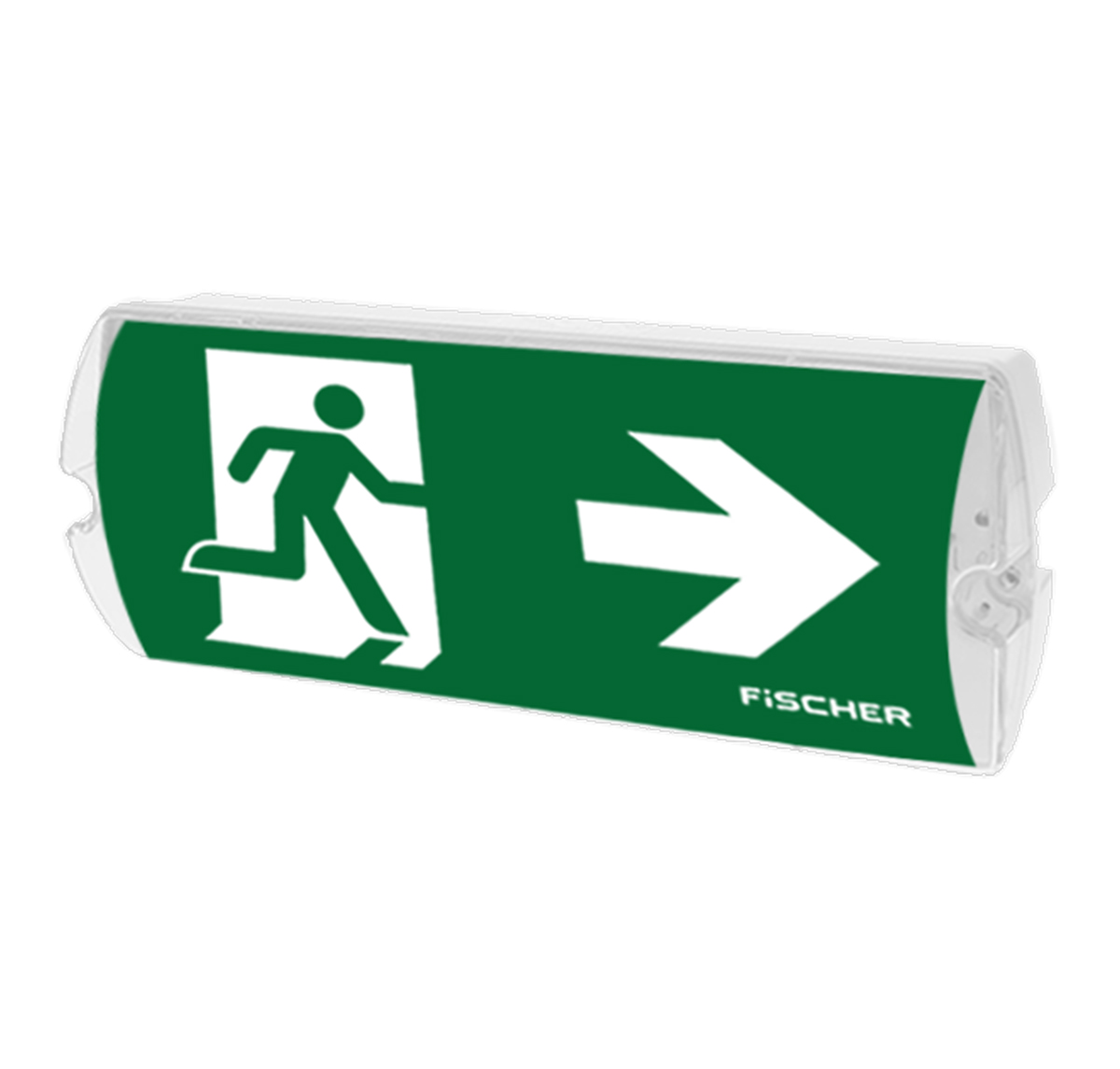

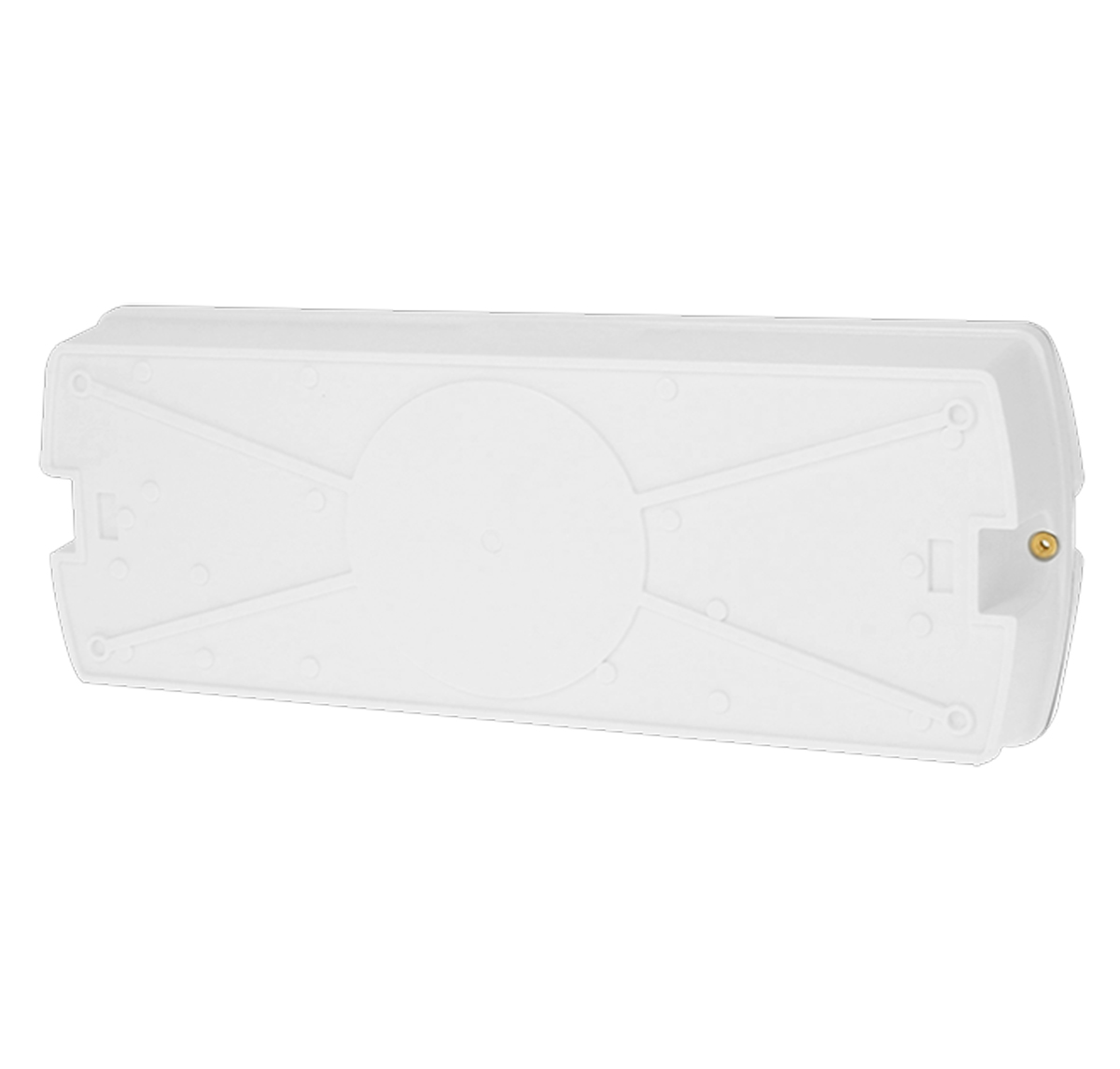

Product figure HAWE83.V3
Hooded luminaire for escape route lighting with universal pictogram set. The housing is suitable for wall mounting and is made of plastic. The emergency luminaire with LED light source is suitable for connection to a central power supply system. The construction of the luminaire is ball impact resistant according to DIN 18032 part 3.
Product figure HAWE83.V3
Product figure HAWE83.V3
Product figure HAWE83.V3
Product figure HAWE83.V3
Product figure HAWE83.V3
Product figure HAWE83.V3
Product figure HAWE83.V3
Dimensions HAWE83.V3

The emergency lighting luminaire is equipped with electronics for operation on central battery systems according to DIN EN 50172. The luminaire is suitable for circuit monitoring.

Technical details

Viewing distance 28 m
Nominal voltage AC 230 V AC 50/60 Hz
Degree of protection IP65
Protection class II
Ambient temperature 0 - 40 °C
Housing material Plastic
Housing colour White
Mounting Surface-mounted wall

Technical specifications

Article data
Item numberHAWE83.V3
EAN4250600732252
Marking
Luminance of pictogram> 500 cd
Viewing distance28 m
Type of pictogramSticky foil
Mounting
MountingSurface-mounted wall
Housing
Degree of protectionIP65
Protection classII
IK ClassIK08
Housing materialPlastic
Housing colourWhite
Surface-mounted cablingYes
Illuminant
LED power3 W
DimmableNo
Mains connection
Nominal voltage AC230 V AC 50/60 Hz
Nominal voltage DC216 V DC
Power AC4.7 W
Power DC5 W
Type of supplycentral (CPS)
Dimensions & Weight
Length355 mm
Width135 mm
Height79 mm
Weight1.2 kg
Packing length385 mm
Packing width145 mm
Packing height85 mm
Shipping weight1.6 kg
