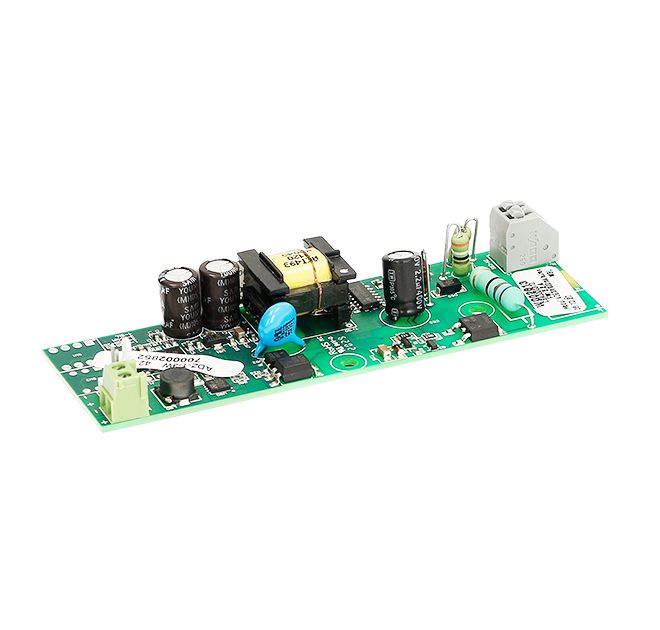

The emergency lighting luminaire is equipped with an ADZ addressing, monitoring and switching module. The module is self-addressing via a unique address. The ADZ is designed for individual luminaire monitoring and the joint operation of luminaires in continuous and standby mode in a final circuit on the ZB2 system. The integrated power monitoring provides detailed measured values of the LED and electronics. The module is switchable and dimmable via the ZB2 central battery system.
Viewing distance | 27 m |
Nominal voltage AC | 230 V AC 50/60 Hz |
Degree of protection | IP41 |
Protection class | II |
Ambient temperature | 0 - 40 °C |
Housing material | Plastic |
Housing colour | White |
Mounting | Wall/Ceiling mounting |
Article data | |
Item number | R1-UE83R |
EAN | 4250600748475 |
Marking | |
Luminance of pictogram | > 500 cd |
Viewing distance | 27 m |
Type of pictogram | Plugable foil |
Mounting | |
Mounting | Wall/Ceiling mounting |
Housing | |
Degree of protection | IP41 |
Protection class | II |
Housing material | Plastic |
Housing colour | White |
Number of cable inlets | 4 |
Surface-mounted cabling | Yes |
Illuminant | |
LED power | 3 W |
Dimmable | No |
Mains connection | |
Nominal voltage AC | 230 V AC 50/60 Hz |
Nominal voltage DC | 216 V DC |
Type of supply | central (CPS) |
Dimensions & Weight | |
Length | 283 mm |
Width | 50 mm |
Packing length | 302 mm |
Packing width | 236 mm |
Packing height | 55 mm |
Shipping weight | 0.75 kg |
