The emergency lighting luminaire is equipped with a monitoring module for automatic function and duration tests and easy-NB connectivity to ensure operation in accordance with EN 50172 and IEC 62034. The included additional module offers easy commissioning via a device and operating system-independent web application with a layout that adapts itself to the screen. Easy-NB emergency lighting luminaires can be easily assigned to an object or property using the QR code provided. The connectivity of each easy-NB emergency lighting luminaire takes place exclusively via a secure VPN tunnel via the mobile network to a German data center. All data communication fees are included for a period of 7 years from delivery on and are extended by 7 years at the moment the battery is replaced.
| Light control | Planar illumination |
| Nominal voltage AC | 230 V AC 50/60 Hz |
| Cell technology | LiFePO4 |
| Autonomy | 8 h |
| Degree of protection | IP65 |
| Protection class | I |
| Ambient temperature | 0 - 40 °C |
| Housing material | Aluminum |
| Housing colour | Anthrazit |
| Mounting | Surface-mounted wall |
| Article data | |
| Item number | T6W810ENB.V3 |
| EAN | 4250600746808 |
| Mounting | |
| Mounting | Surface-mounted wall |
| Housing | |
| Degree of protection | IP65 |
| Protection class | I |
| Housing material | Aluminum |
| Housing colour | Anthrazit |
| RAL housing colour | RAL7016 |
| Number of cable inlets | 1 |
| Surface-mounted cabling | No |
| Illuminant | |
| LED power | 1 W |
| Light control | Planar illumination |
| Rated luminous flux of the luminaire | 99 lm |
| Dimmable | No |
| Mains connection | |
| Nominal voltage AC | 230 V AC 50/60 Hz |
| Power AC | 0.2 W |
| Power DC | 1.2 W |
| Type of supply | dezentral (selbstversorgt) |
| Accumulator | |
| Cell technology | LiFePO4 |
| Nominal voltage | 6.4 V |
| Nominal capacity | 3000 mAh |
| Autonomy | 8 h |

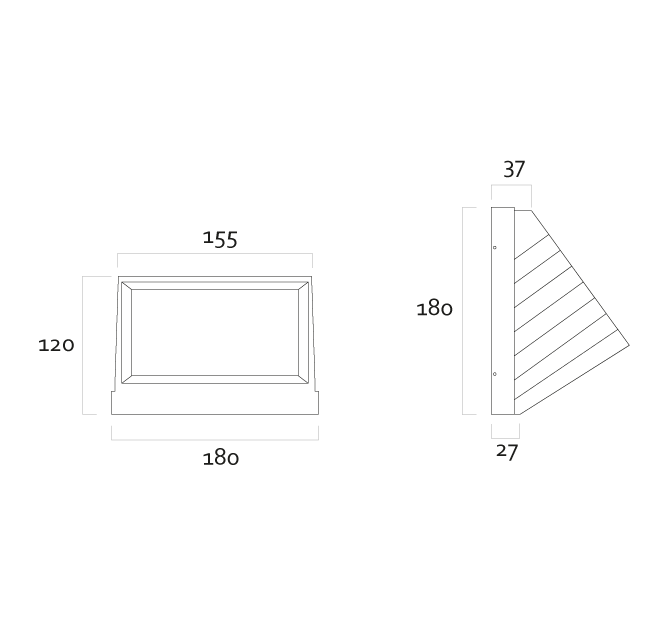

| Dimensions & Weight | |
| Length | 180 mm |
| Width | 180 mm |
| Height | 120 mm |
| Weight | 1.34 kg |
| Packing length | 195 mm |
| Packing width | 195 mm |
| Packing height | 140 mm |
| Shipping weight | 1.9 kg |
