Escape sign luminaire W6D383SC

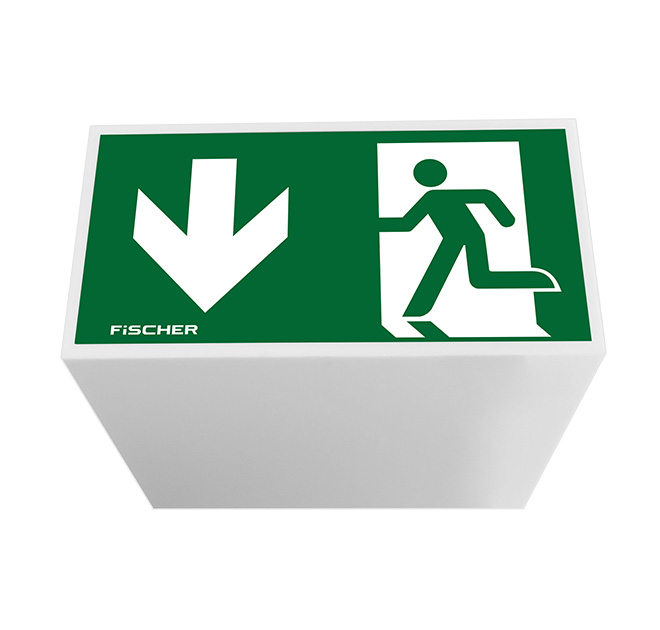

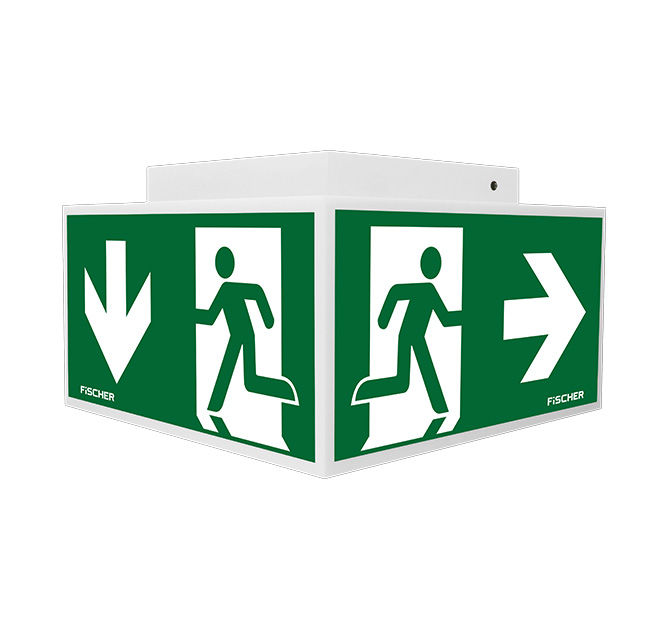

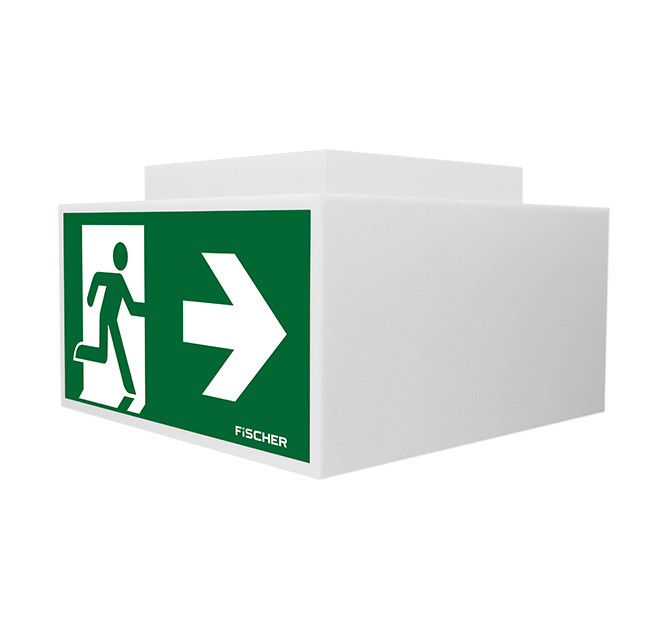

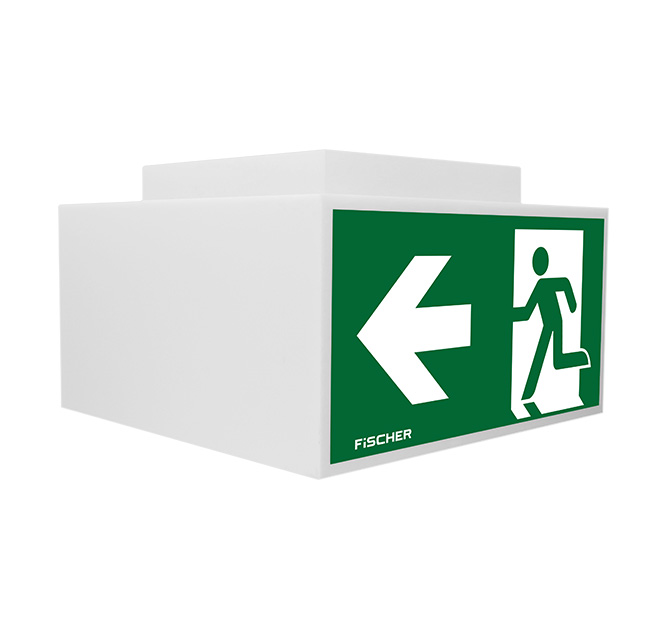

4-sided, hooded luminaire for escape route lighting with printed pictograms (arrow down, arrow left, arrow right). The housing is suitable for ceiling surface mounting and is made of powder-coated sheet steel. For the emergency luminaire with LED light source, a battery integrated in the luminaire serves as a backup power source.

The emergency lighting luminaire is equipped with a monitoring module for automatic function and operating duration tests to ensure operation in accordance with DIN V VDE 0108-100-1 and DIN VDE 0711-400. The status display (ready for operation, charging operation, battery operation, battery error, LED/electronic error) is provided by a two-colour status LED. The integrated battery contains electronic charge monitoring and deep discharge protection.

Technical details

Viewing distance	25 m
Nominal voltage AC	230 V AC 50/60 Hz
Cell technology	LiFePO4
Autonomy	3 h
Degree of protection	IP40

Protection class	I
Ambient temperature	0 - 35 °C
Housing material	Steel sheet
Housing colour	White

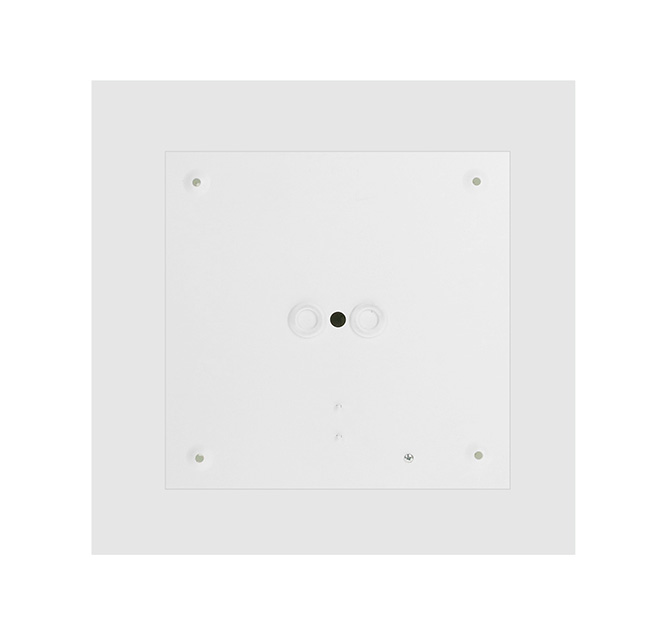

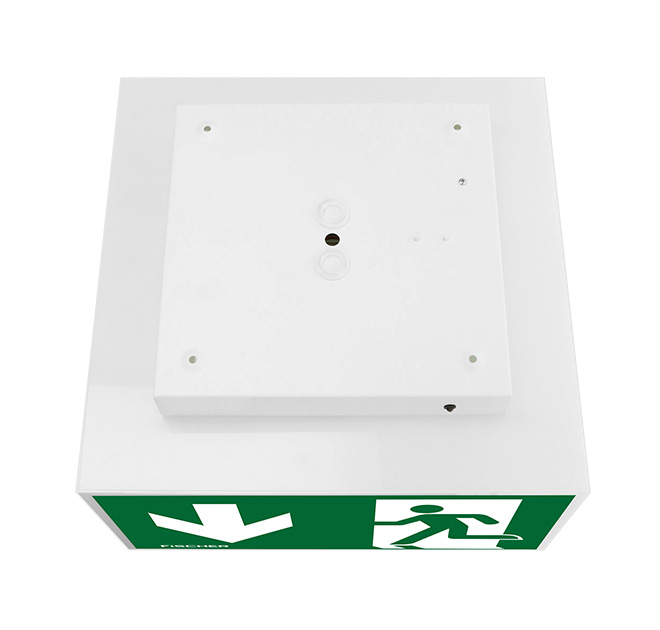

Mounting	Surface-mounted ceiling

Technical specifications

Article data
Item number	W6D383SC
EAN	4250600736786
Marking
Luminance of pictogram	> 500 cd
Viewing distance	25 m
Type of pictogram	Screen printing
Mounting
Mounting	Surface-mounted ceiling
Housing
Degree of protection	IP40
Protection class	I
Housing material	Steel sheet
Housing colour	White
Number of cable inlets	2
Surface-mounted cabling	No
Illuminant
LED power	6 W
Dimmable	No
Mains connection
Nominal voltage AC	230 V AC 50/60 Hz
Power AC	5.5 W
Power DC	8.1 W
Type of supply	dezentral (selbstversorgt)
Accumulator
Cell technology	LiFePO4
Nominal voltage	6.4 V
Nominal capacity	6000 mAh
Autonomy	3 h
Dimensions & Weight
Length	260 mm
Width	260 mm
Height	175 mm
Weight	1.4 kg
Packing length	275 mm
Packing width	275 mm
Packing height	250 mm
Shipping weight	2.23 kg
