Escape sign luminaire W6DE83

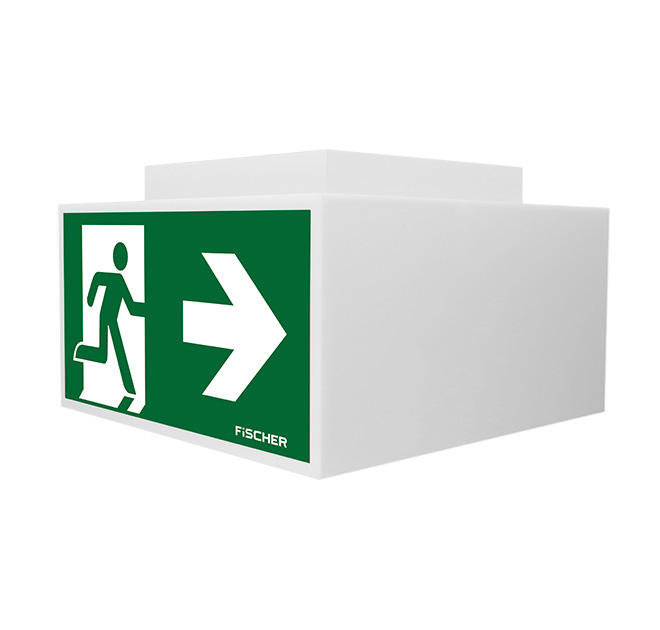

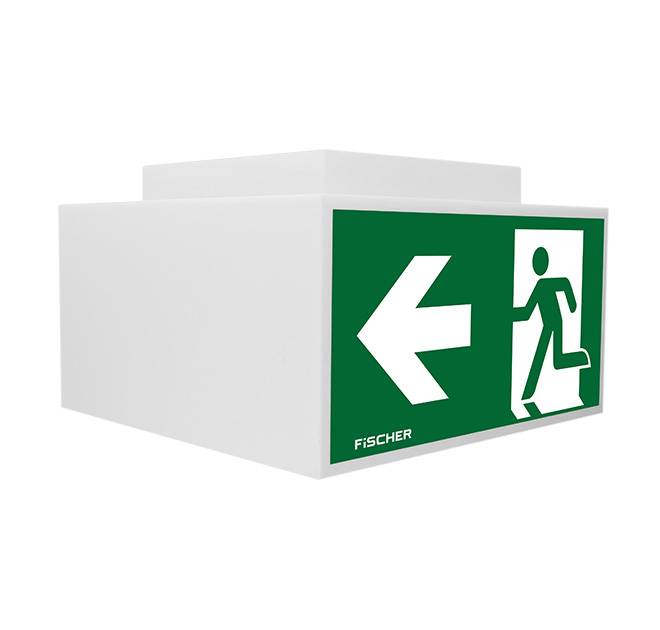

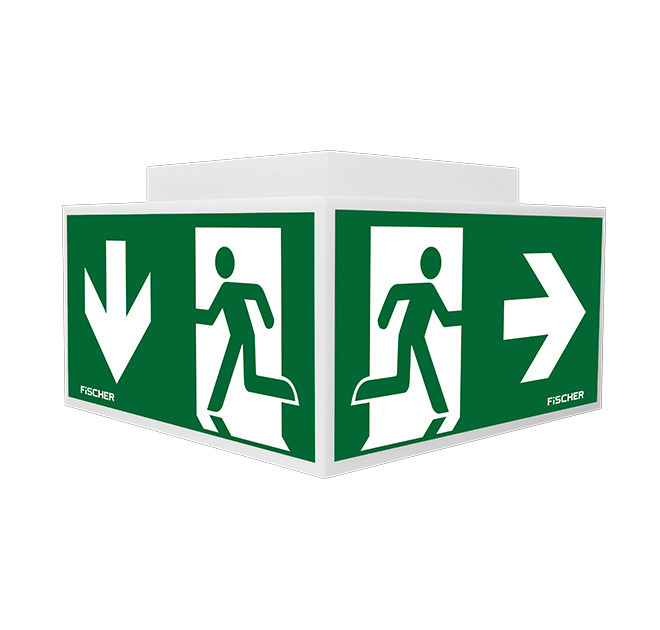

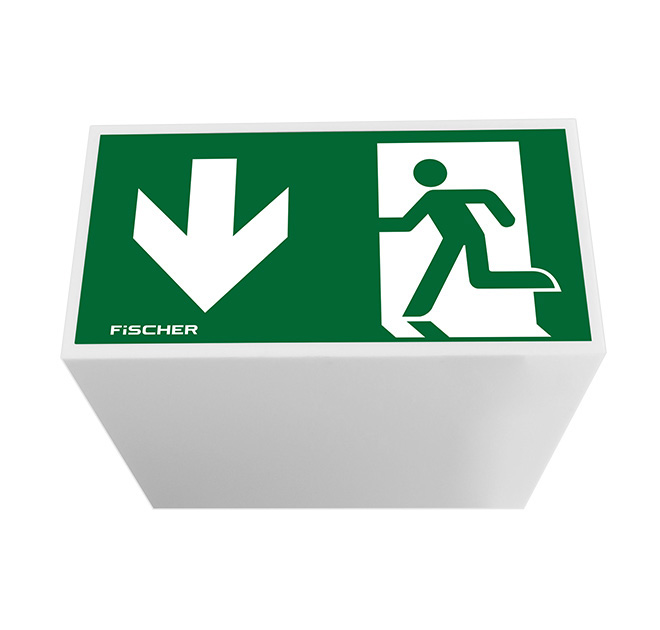

4-sided, hooded luminaire for escape route lighting with printed pictograms (arrow down, arrow left, arrow right). The housing is suitable for ceiling surface mounting and is made of powder-coated sheet steel. The emergency luminaire with LED light source is suitable for connection to a central power supply system.

The emergency lighting luminaire is equipped with electronics for operation on central battery systems according to DIN EN 50172. The luminaire is suitable for circuit monitoring.

Technical details

Viewing distance	25 m
Nominal voltage AC	230 V AC 50/60 Hz
Degree of protection	IP40
Protection class	I

Ambient temperature	0 - 35 °C
Housing material	Steel sheet
Housing colour	White

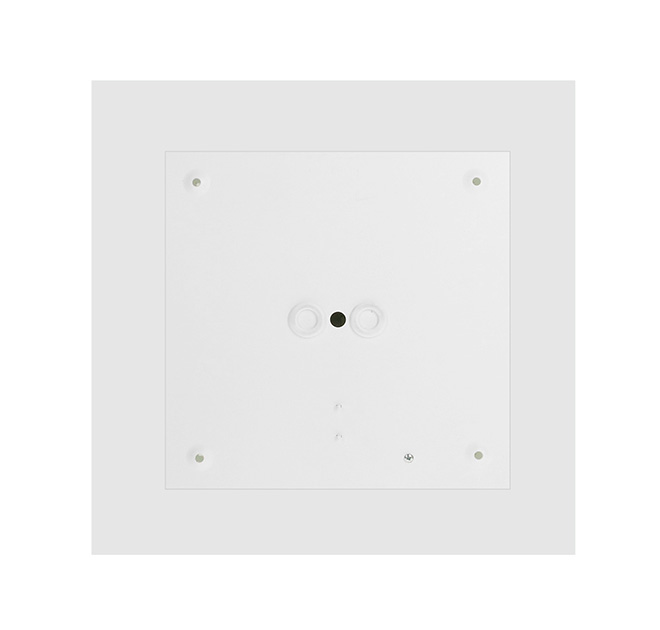

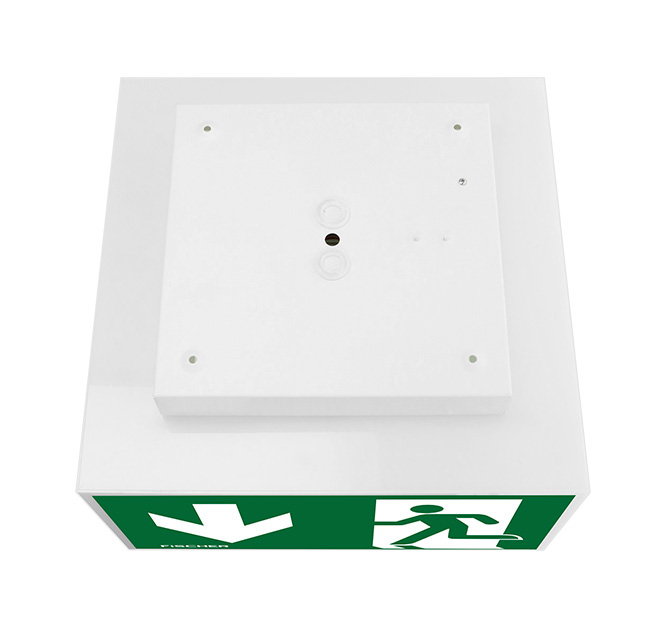

Mounting	Surface-mounted ceiling

Technical specifications

Article data
Item number	W6DE83
EAN	4250600736793
Marking
Luminance of pictogram	> 500 cd
Viewing distance	25 m
Type of pictogram	Screen printing
Mounting
Mounting	Surface-mounted ceiling
Housing
Degree of protection	IP40
Protection class	I
Housing material	Steel sheet
Housing colour	White
Number of cable inlets	2
Surface-mounted cabling	No
Illuminant
LED power	6 W
Dimmable	No
Mains connection
Nominal voltage AC	230 V AC 50/60 Hz
Nominal voltage DC	216 V DC
Power AC	9.4 W
Power DC	9 W
Type of supply	central (CPS)
Dimensions & Weight
Length	260 mm
Width	260 mm
Height	175 mm
Weight	1.4 kg
Packing length	275 mm
Packing width	275 mm
Packing height	250 mm
Shipping weight	2.2 kg
