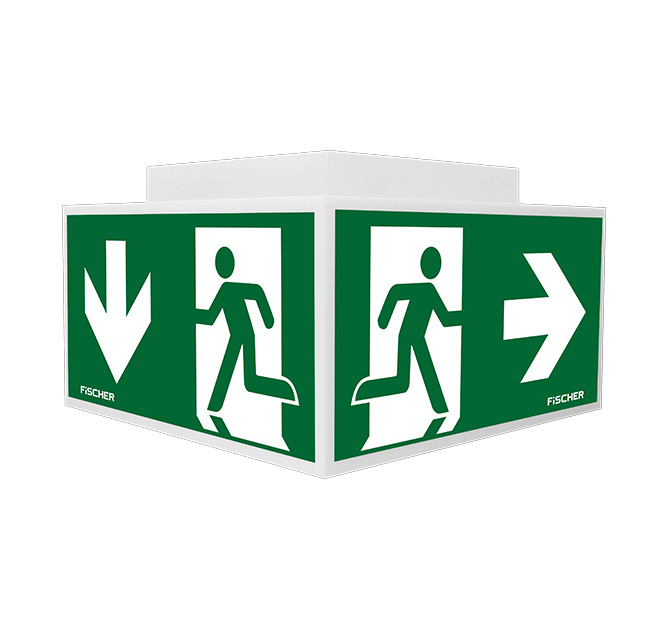

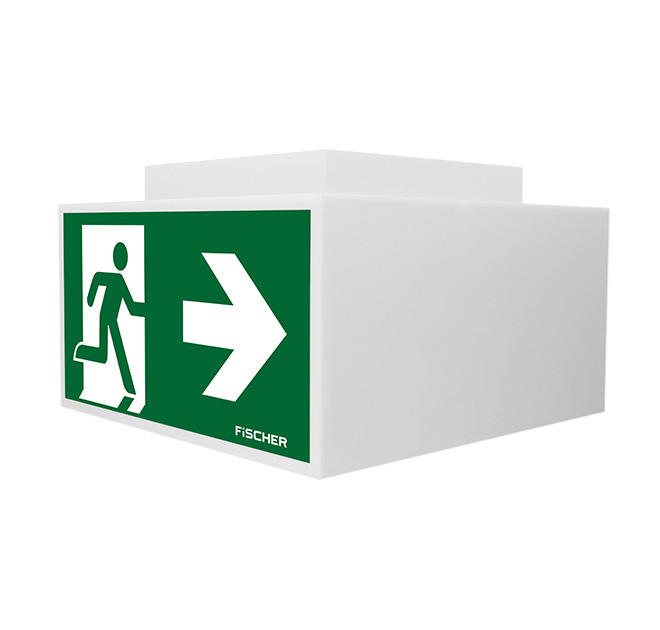

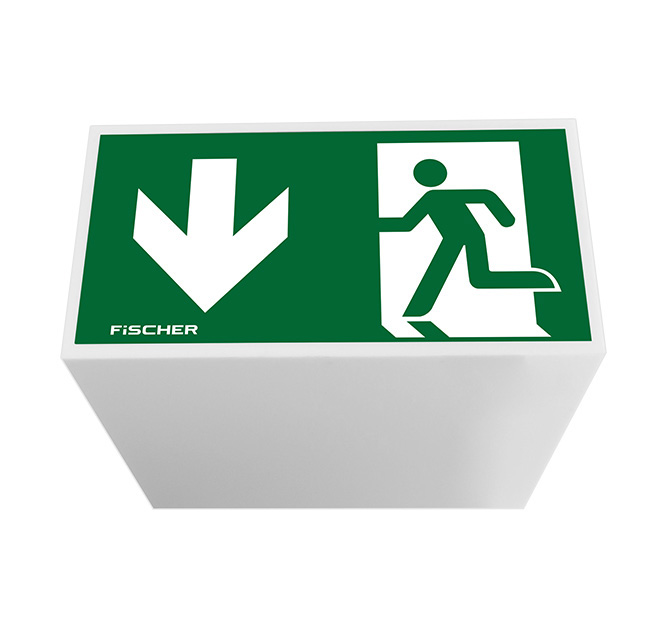

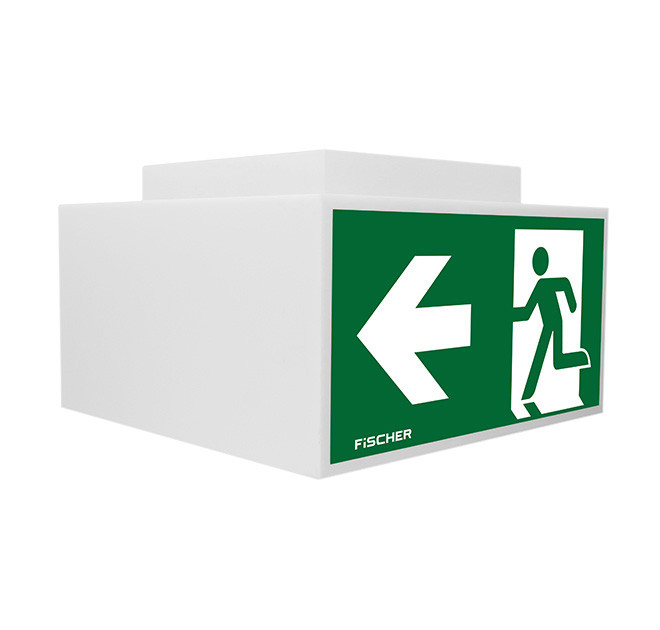

The emergency lighting luminaire is equipped with an addressing, monitoring and switching module for INSiLIA2 systems. The module is self-addressing and has a unique address. The integrated performance monitoring of the LED and electronics enables detailed function tests. The luminaire can be switched and dimmed via the INSiLIA2 LPS system. The supply is 48 V DC and has a connection protected against polarity reversal.
Viewing distance | 25 m |
Degree of protection | IP40 |
Protection class | III |
Ambient temperature | -5 - 35 °C |
Housing material | Steel sheet |
Housing colour | White |

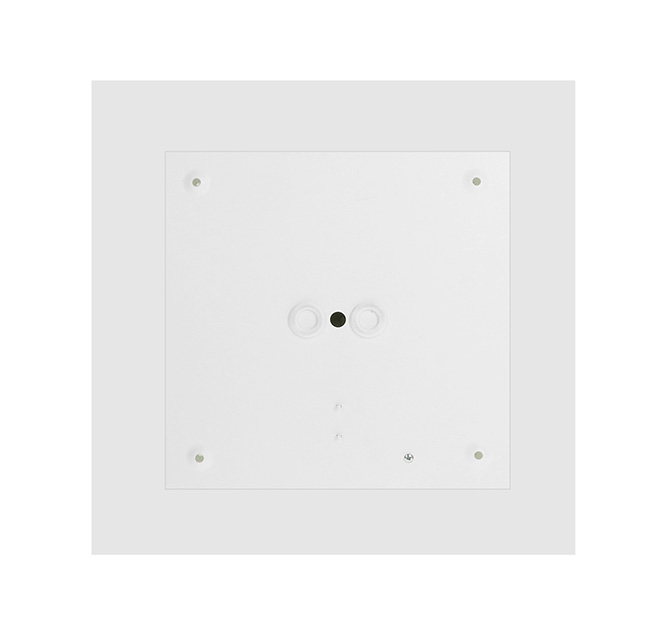

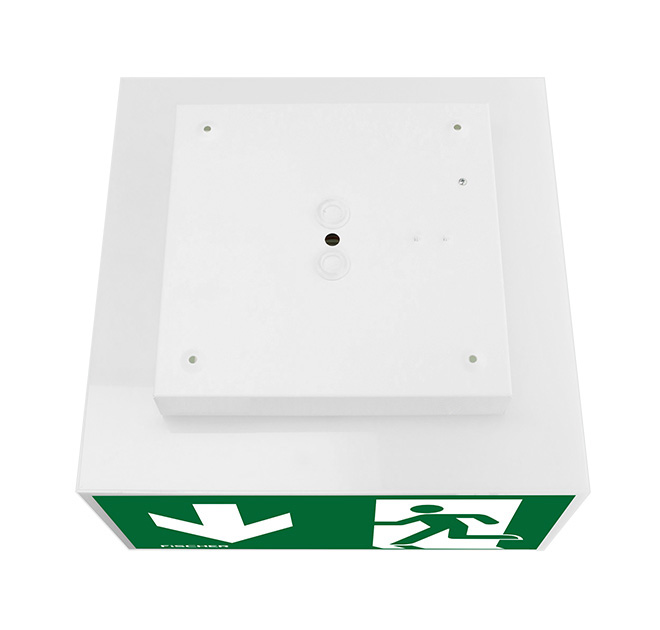

Mounting | Surface-mounted ceiling |
Article data | |
Item number | W6DE83I2 |
EAN | 4250600736816 |
Marking | |
Luminance of pictogram | > 500 cd |
Viewing distance | 25 m |
Type of pictogram | Screen printing |
Mounting | |
Mounting | Surface-mounted ceiling |
Housing | |
Degree of protection | IP40 |
Protection class | III |
Housing material | Steel sheet |
Housing colour | White |
Number of cable inlets | 2 |
Surface-mounted cabling | No |
Illuminant | |
LED power | 6 W |
Dimmable | Yes |
Mains connection | |
Nominal voltage DC | 48 V DC |
Power DC | 7.5 W |
Type of supply | central (CPS) |
Dimensions & Weight | |
Length | 260 mm |
Width | 260 mm |
Height | 175 mm |
Weight | 1.4 kg |
Packing length | 275 mm |
Packing width | 275 mm |
Packing height | 250 mm |
Shipping weight | 2.2 kg |
