/ Overview / LPS / Insilia 1 24 V / central control

THE REVOLUTION OF LPS SYSTEMS

INSiLIA - DIE REVOLUTION DER LPS-SYSTEME

WHY IT IS SPECIAL

  • large, colour “Smart Touch” screen with 120 mm x 90 mm surface for intuitive operation
  • Touch-screen optimized buttons
  • simple, flat menu structures
  • integrated event log
  • SD card slot for saving the event log
  • 100-BASE-Ethernet port for programming, configuration and management of the system, system configurations can be imported and exported, saving the event log in plain text
  • suitable for use directly in the fire compartment – no need to lay E30 cables
  • available system languages: German, English, Swedish

TECHNICAL SPECIFICATIONS

  • 4 end circuits in INSiLIA technology, connection terminals up to 2.5 mm²
  • 4 x switching inputs for external potential 230V AC (potential-free inputs)
  • 2 x switching inputs with internal potential 24V DC (potential-loaded inputs)
  • 2 x switching inputs with internal potential 24V DC (potential-loaded inputs)
  • 1 x iCCIF for monitoring the closed circuit
  • Mechanical rating IP: 20
  • Protection class: I
  • Colour: RAL 9001
  • Input voltage: 230 V / 50 Hz
  • Output voltage: 24 V DC SELV
  • Operating temperature: 5°C to 35°C


FINAL CIRCUITS IN INSILIA TECHNOLOGY

  • maintained (M) and non maintained (NM) luminaires within one circuit
  • each connected luminaire can be configured independently (M/NM)
  • single or combined switching of luminaires via switching inputs (SMART technology)
  • single or combined dimming of luminaires via switch inputs (SMART technology)
  • individual light monitoring via the supply line in standard (no separate bus line necessary)

Touch Screen

INSiLIA-Home
INSiLIA-Starbildschirm

INSiLIA Wizard für die Inbetriebnahme

Inbetriebnahme Zeit um 95% reduzieren!

  • INSiLIA Wizard Dsiplay

Die Erstinbetriebnahme der INSiLIA LPS erfolgt automatisch über den INSiLIA WIZARD. Angeschlossene Leuchten werden softwaregeführt nach Funktion erkannt. So werden in 7 einfachen Schritten alle angeschlossenen Rettungszeichenleuchten direkt auf Dauerbetrieb und Notleuchten in Bereitschaftsbetrieb programmiert. Der gesamte Vorgang dauert für die maximal 80 anzuschließenden Leuchten nicht länger als 3 Minuten. Die Aufgabe des Installateurs beschränkt sich auf die anschließende Beschriftung der Leuchten.

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

CABLE LENGTHS AND CROSS SECTIONS

Connected load on the circuit Cable cross section maximum length
bei 24 W / 1A 1,5 mm² 142 m
2,5 mm² 236 m
bei 48 W / 2A 1,5 mm² 71 m
2,5 mm² 118 m
bei 72 W / 3A 1,5 mm² 48 m
2,5 mm² 79 m

WIRING DIAGRAM

Insilia_Schemabild

SMART TECHNOLOGY VS. CONVENTIONAL INSTALLATION


VORTEILE-DER-SMART-TECHNOLOGIE

KONVENTIONELLE-INSTALLATION-INSiLIA


ADVANTAGES OF THE SMART TECHNOLOGY:

Operation of the luminaires in the different operating modes (BL, CL, switched and dimmable) within one circuit is possible.

Further advantages:

  • shorter cable lengths
  • less circles necessary
  • lower installation effort
  • operating mode can be changed afterwards without rewiring

CONVENTIONAL INSTALLATION

A conventional installation differs from SMART technology in essential aspects:

  • only one operating mode per circuit possible
  • more circles necessary
  • higher installation effort
  • high costs for retrospective changes


Auto Adressierende Leuchten

Reduzieren der Montagezeit um bis 30%

Alle kompatiblen Notleuchten für das INSILIA LPS System verfügen über ein integriertes Betriebsgerät mit Einzelleuchtenüberwachung. Eine Programmierung der Adressen entfällt. Hierdurch besteht kein Risiko, dass Leuchten – Adressen versehentlich doppelt vergeben werden und zeitintensive Fehlersuchen notwendig sind. Ebenso ist für alle INSiLIA Systeme kein PC und keine PC-Software zur Leuchten Programmierung notwendig.

INSILIA CIRCUIT BOARD

INSiLIA - DIE REVOLUTION DER LPS-SYSTEME INSiLIA-Platine

AUTOMATIC E-MAIL NOTIFICATION IN CASE OF ERRORS

INSiLIA-Automatischer-Mailversand

CONFIGURATION

  • Interval settings
  • send errors, test results, measured values or a system log file

INSiLIA 3 PHASE MONITORING

Notbeleuchtung INSiLIA-DPÜ
x-Phasen-Netzüberwachung

UNDERVOLTAGE MONITORING

  • with loop monitoring (ICCIF)
  • no NHX line necessary
  • restores the condition according to DIN VDE 0100 part 718 section 718.563.8 in case of power failure

INSILIA GPK TECHNOLOGY

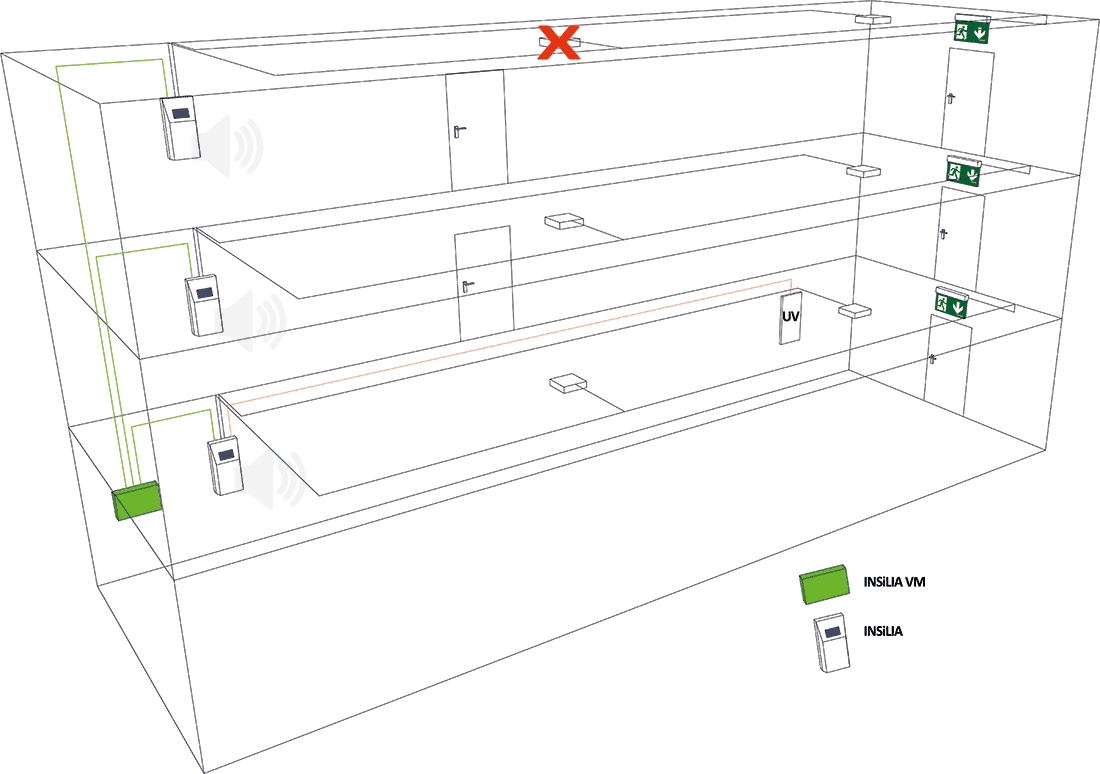

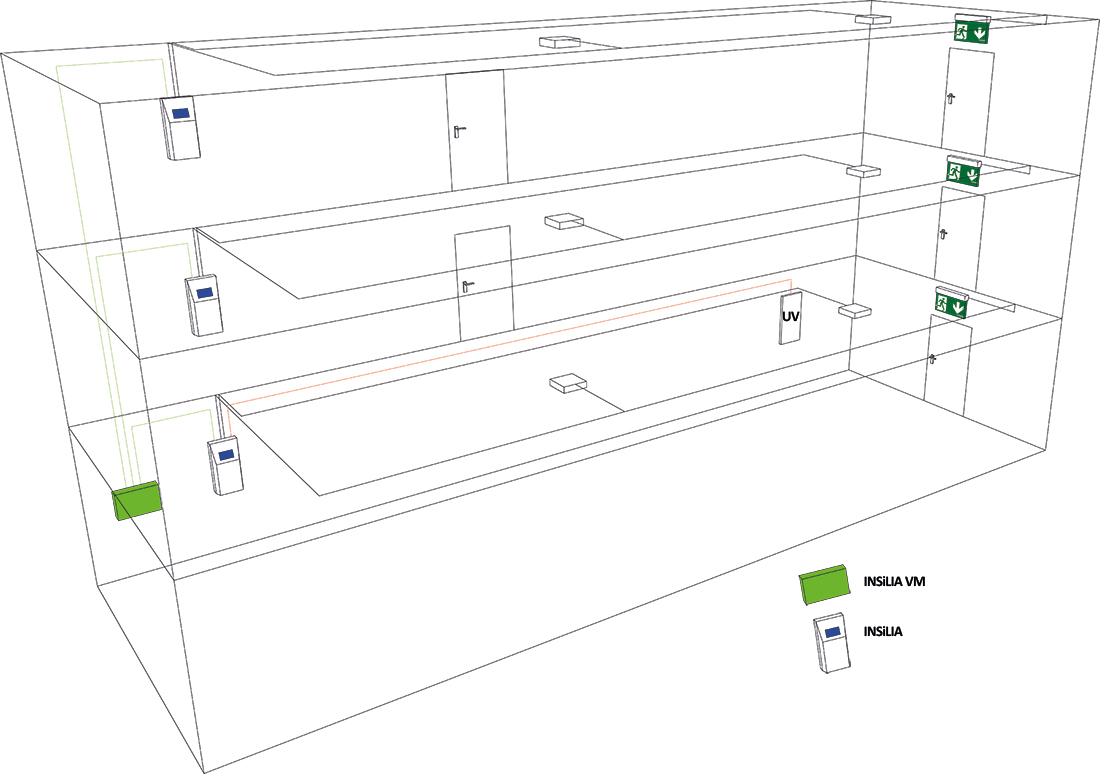

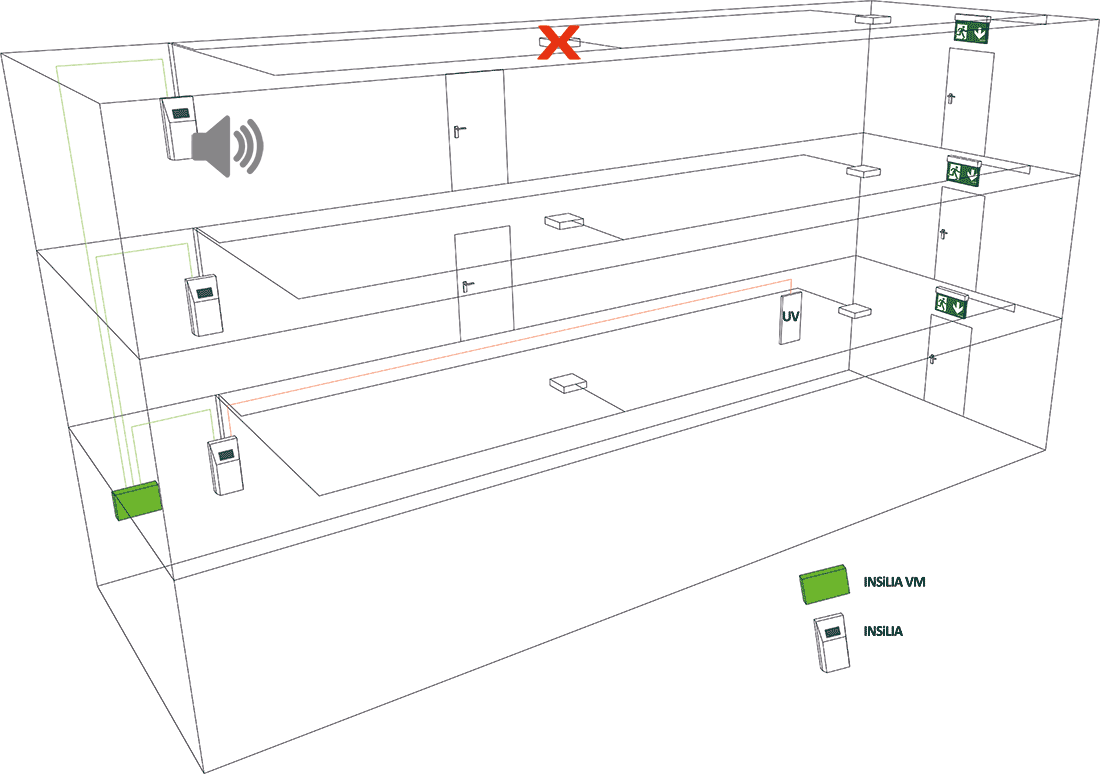

  • enables the active forwarding of system states to all or selected INSiLIA LPS systems
  • if desired, due to the INSiLIA GPK technology, all potential-free contacts of networked INSiLIA-LPS systems work in parallel
  • system states of individual systems can be tapped at the potential-free contacts on all or selected systems
  • via the INSiLIA GPK technology the status of all networked INSiLIA LPS systems in the building can be centrally displayed or forwarded to the building management system.
  • for the use of the INSiLIA GPK technology, the use of the INSiLIA VM is mandatory.

FMS-NB-IoT-IN - connects INSiLIA Systems to the Internet of Things (IoT) via cellular communication.

With the optional FMS-NB-IoT-IN, you can connect your INSiLIA LPS to the FiSCHER data center via the Internet of Things (IoT) using a cellular connection. The FMS-NB-IoT-IN can be easily installed in your running system via the FiSCHER service or a certified partner.



Once connected to the data center, you can access the status of your INSiLIA LPS from any location via an Internet-capable terminal with a web browser. This eliminates the need for you to make daily on-site inspections of your Systems while the costs for the mobile phone connection are already included in the purchase price for seven years. If you have your INSiLIA systems retrofitted with an FMS-NB-IoT-IN, you can also monitor plants in different objects yourself, or delegate the necessary tasks to us by means of a FiSCHER Maintenance Contract Plus, to reduce your personnel costs and to maximize the operational safety.


Anlagenstatus
Benachrichtigungseinstellungen
Gebäudeübersicht

INSiLIA VM

INSILIA NETWORKING MODULE

  • secured network connection for INSiLIA communication
  • enables the networking of up to 16 INSiLIA systems
  • protected against power failure with a bridging time of more than 2 h
  • installed in a handy 19″ steel cabinet

INSiLIA-Silent

ADVANTAGES OF INSILIA-SILENT

  • no noise
  • maintenance-free for 5 years
  • no soiling of the fans
  • lower follow-up costs in maintenance
  • higher availability instead of 99.5%, 99.9%
